- Macworld experiences that Apple’s new M5 Professional and M5 Max MacBooks can help three and 4 exterior shows respectively by way of a single Thunderbolt 5 connection.
- This represents a major improve from earlier M4 Professional/Max chips that supported solely two exterior shows, addressing long-standing limitations in comparison with Home windows machines.
- The improved multi-display functionality advantages builders and creatives by decreasing cable muddle and enabling bigger multi-screen workspaces by way of appropriate Thunderbolt 5 docks.

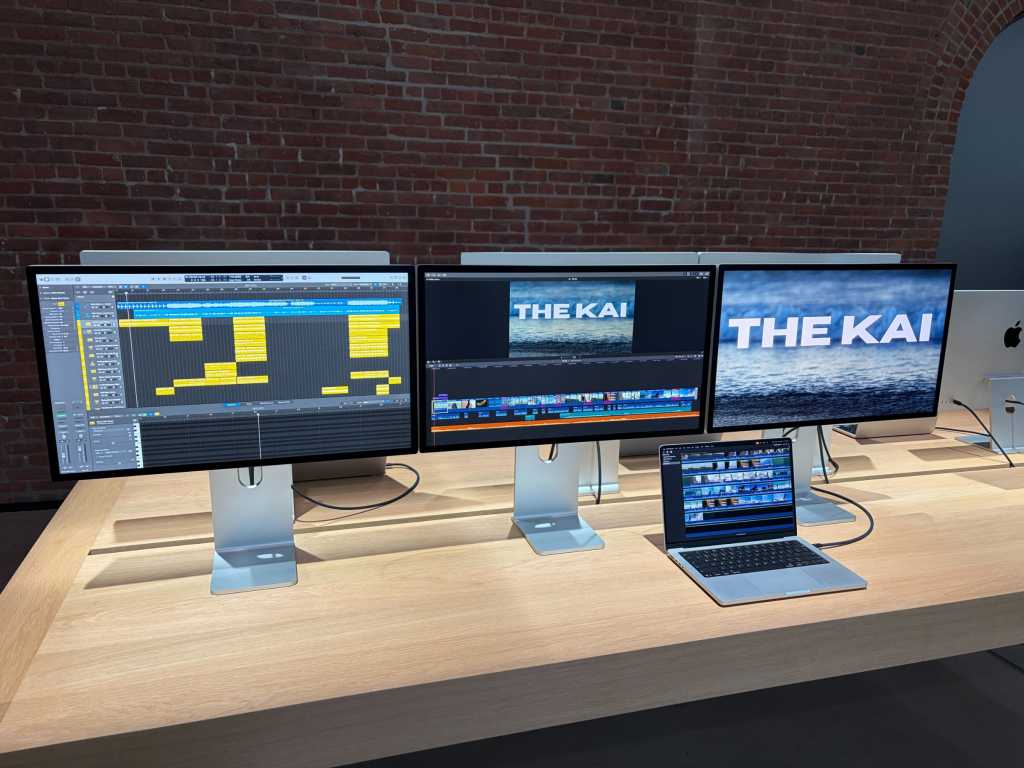

Apple nonetheless doesn’t help Multi-Stream Transport (MST) on macOS, however with the brand new M5 Professional and M5 Max chips, that limitation issues far much less. For the primary time, high-end MacBooks can drive three and even 4 exterior shows from a single Thunderbolt connection, up from a long-standing restrict of two, bringing them nearer to the multi-monitor setups lengthy related to Home windows machines.
This issues most for energy customers who depend on a number of screens, reminiscent of builders and creatives, particularly these utilizing Thunderbolt docks to simplify their desk setups. In observe, it means fewer cables, much less reliance on DisplayLink and different workarounds, and the power to run bigger multi-screen workspaces from a single connection.
This text explains what’s modified, how these new show capabilities work in observe, and what it means for anybody utilizing, or contemplating, a Thunderbolt dock or multi-screen setup with a Mac.
What number of shows are supported over one cable
- M5 Professional: Drives three shows over one Thunderbolt cable

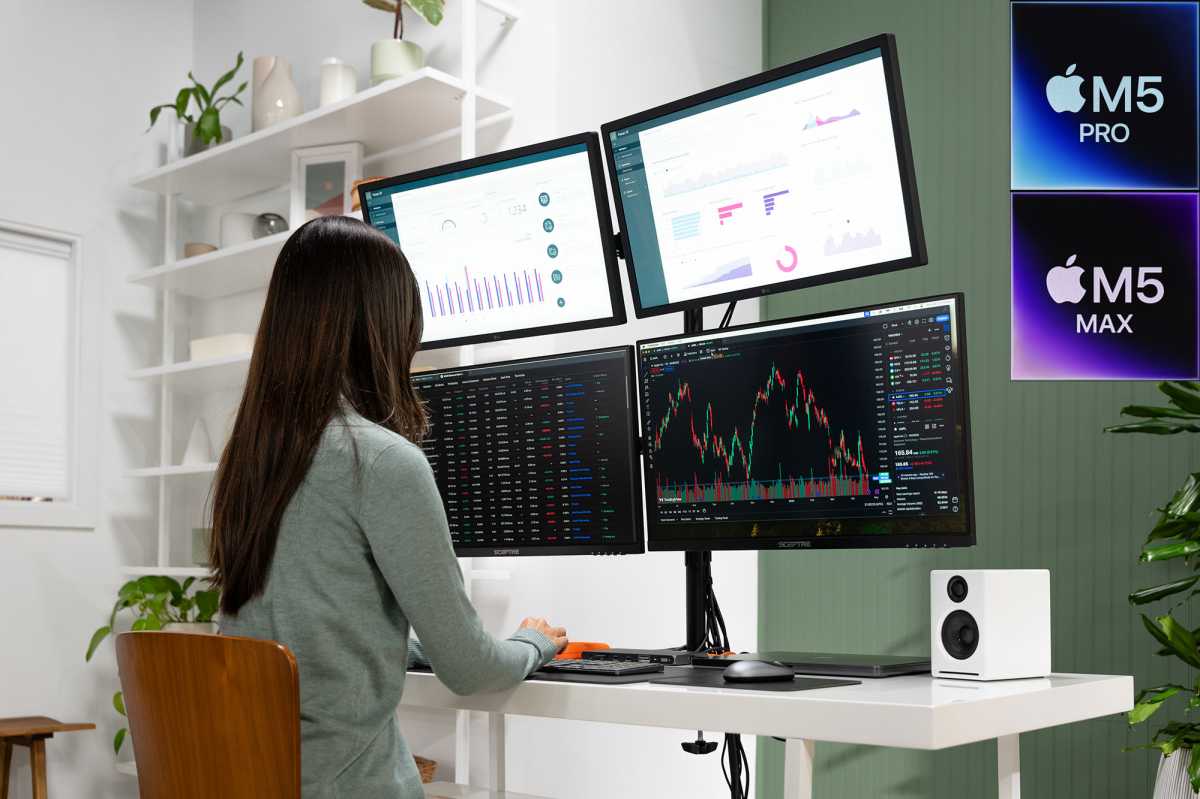

- M5 Max: Drives 4 shows over one Thunderbolt cable
- M4 Professional and M4 Max and earlier: Drive as much as two exterior shows over a single Thunderbolt port
- M1 and M2 chips and A18 Professional: Only one show supported
What you want
- Thunderbolt 5 dock
- Out there ports
- Three to 4 screens (fourth would require daisy-chaining)
Macs with an M5 Professional now help as much as three exterior shows, and M5 Max Macs can run 4 shows over a single Thunderbolt cable. The previous-generation M4 Professional and M4 Max (and earlier chips) supported solely as much as two exterior shows over a single Thunderbolt port. (The plain M1 and M2 chips, plus the MacBook Neo’s A18 Professional, can deal with only one until you add DisplayLink software program.)
This advance in Apple’s new MacBooks additionally implies that licensed Thunderbolt 5 Mac docking stations that have been beforehand marketed as supporting simply two exterior shows ought to now be capable of help that very same variety of screens because the M5 Professional (three) and M5 Max (4) enable through their single cable connection to the MacBook.
Simon Jary
Docking station show help
Thunderbolt 5 docks are the place these new show capabilities change into most helpful. Most now help as much as three exterior shows when paired with an M5 Professional MacBook, whereas some can deal with 4 with the M5 Max by daisy-chaining a further monitor. Precisely what you possibly can run, nonetheless, nonetheless is determined by the dock’s out there ports and whether or not your screens help options like USB-C daisy-chaining.

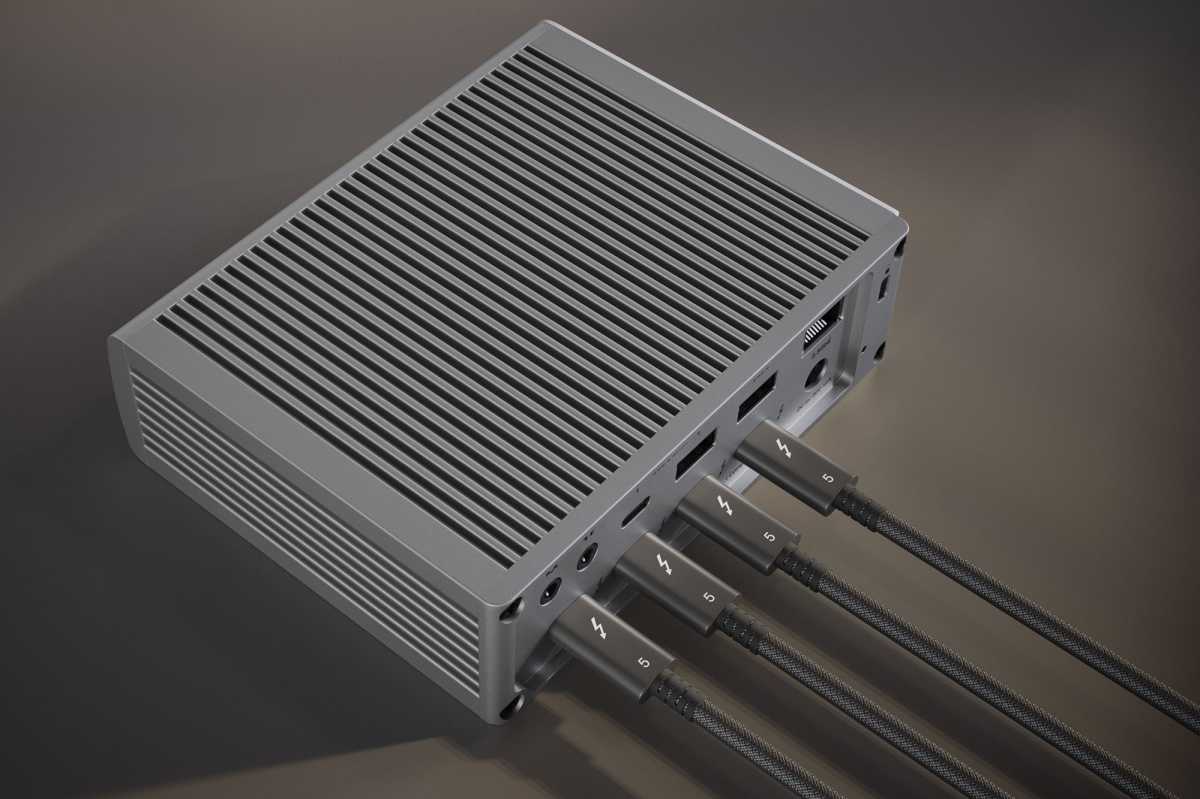

CalDigit has confirmed that its in style TS5 and TS5 Plus docks, in addition to the Component 5 Hub, now help as much as three shows on M5 Professional MacBooks, and as much as 4 shows on M5 Max. Because the docks don’t function sufficient ports for the fourth show, the additional monitor for the M5 Max must be daisy-chained from one of many others. The screens concerned would want to help USB-C daisy-chaining (like the brand new Studio Show).
On the TS5 Plus, you possibly can add one monitor to the DisplayPort after which two screens to the downstream Thunderbolt 5 ports. With the M5 Max, you would want to daisy-chain a fourth monitor to one of many ones related to a Thunderbolt port—or you possibly can daisy-chain a number of screens through one port on the TS5 Plus.
On the CalDigit TS5 and Component 5 Hub, you’d join three screens to the Thunderbolt ports, after which daisy-chain the fourth for the M5 Max. Once more, you can daisy-chain a number of screens through one Thunderbolt port.
CalDigit

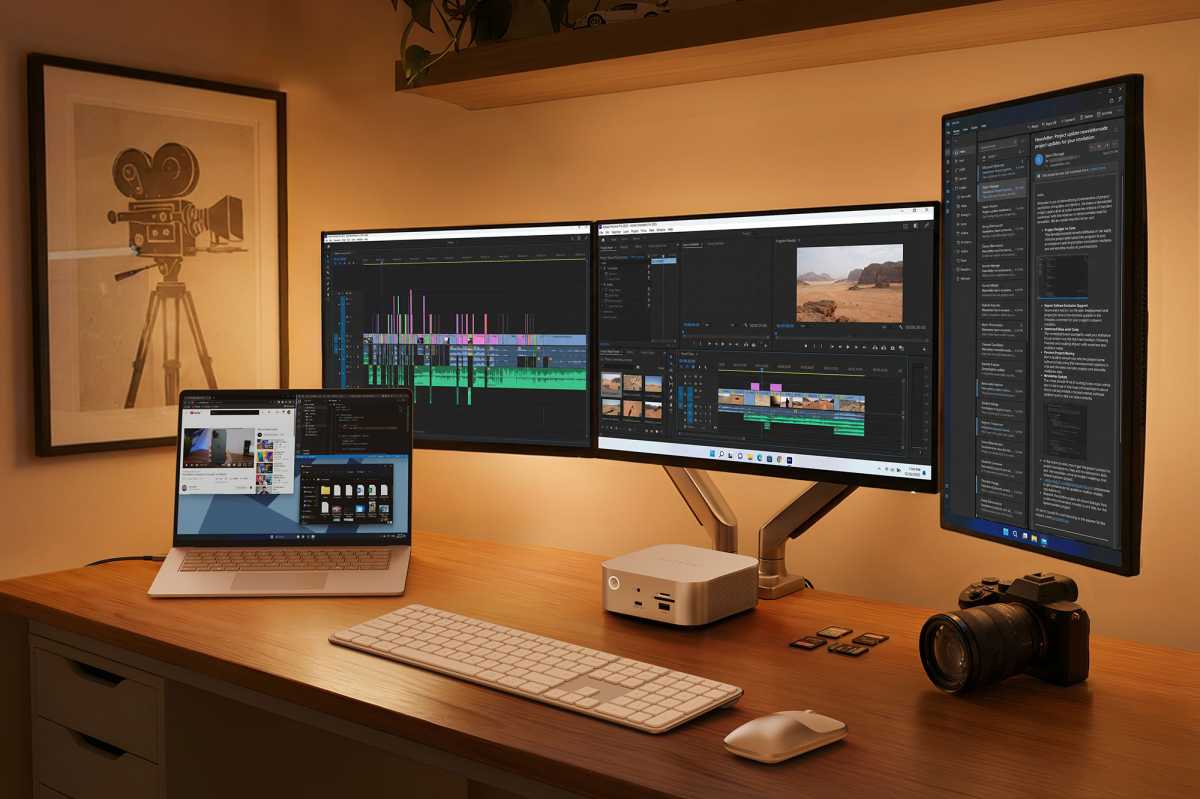

Satechi examined its forthcoming Thunderbolt 5 CubeDock—at present present process testing within the Macworld Labs—and confirmed to Macworld that it now helps three exterior shows on the M5 Professional/Max—it has solely the three downstream Thunderbolt ports to play with.
Plugable’s preliminary testing of its Thunderbolt 5 TBT-UDT3 docking station with the brand new M5 MacBooks confirmed optimistic outcomes. It confirmed that as much as three shows work effectively, however the firm remains to be investigating efficiency with refresh charges greater than 60Hz. Till it has additional readability and extra take a look at outcomes, it recommends a most of three 4K 60Hz shows when utilizing its Thunderbolt 5 dock.
After testing its forthcoming Echo 21 Thunderbolt 5 SuperDock—additionally being examined by Macworld—with an M5 Professional MacBook Professional, Sonnet efficiently used the dock to energy three 4K 144Hz shows utilizing two downstream Thunderbolt ports and the DisplayPort. It’s at present ready to check an M5 Max with a four-display configuration.
Lastly, Kensington advised Macworld that its Thunderbolt 5 docks all help as much as three exterior shows for M5 Professional and Max, whereas the Thunderbolt 4 docks will proceed to be capped at two shows. Once more, testing hasn’t been accomplished with the M5 Max, however a consultant reported that “help for 4 exterior shows out of M5 Max is theoretically potential from the laptop computer’s perspective”.
Satechi
Can M5 Macs lastly run a number of shows over one cable?
In its help doc on MacBook Professional shows will be related to MacBook Professional, Apple states the “MacBook Professional with M5 Professional chip helps … three exterior shows … as much as a local decision of 6K (6144 x 3456) at 60Hz or 4K (3840 x 2160) at 144Hz over Thunderbolt or HDMI” and the “MacBook Professional with M5 Max chip helps … 4 exterior shows … as much as a local decision of 6K (6144 x 3456) at 60Hz or 4K (3840 x 2160) at 144Hz over Thunderbolt or HDMI.”
The earlier one- or two-monitor limitation—which continues for any Mac that doesn’t have a minimum of an M5 Professional or M5 Max—is brought on by the macOS for daisy-chaining or splitting a number of screens through a single USB-C/DisplayPort/Thunderbolt cable. Apple limits this performance on the working system degree (in contrast to Home windows or Linux) by refusing to help Multi-Stream Transport (MST), however has constructed a proprietary answer into its newest chips: the M5 Max can now help as much as 4x DisplayPort tunnels per port, and the M5 Professional three.
Thunderbolt docks don’t depend on MST to perform, making them the most suitable choice for a number of screens on a Mac through a single connection, however till the M5 Professional and M5 Max, docks have been nonetheless restricted to 2 prolonged shows—until you used an adjunct such because the iVanky FusionDock Max 2, which may natively help three shows out of the field. The compromise with that dock is that you have to use two of the Mac’s Thunderbolt ports to connect with the Max 2.

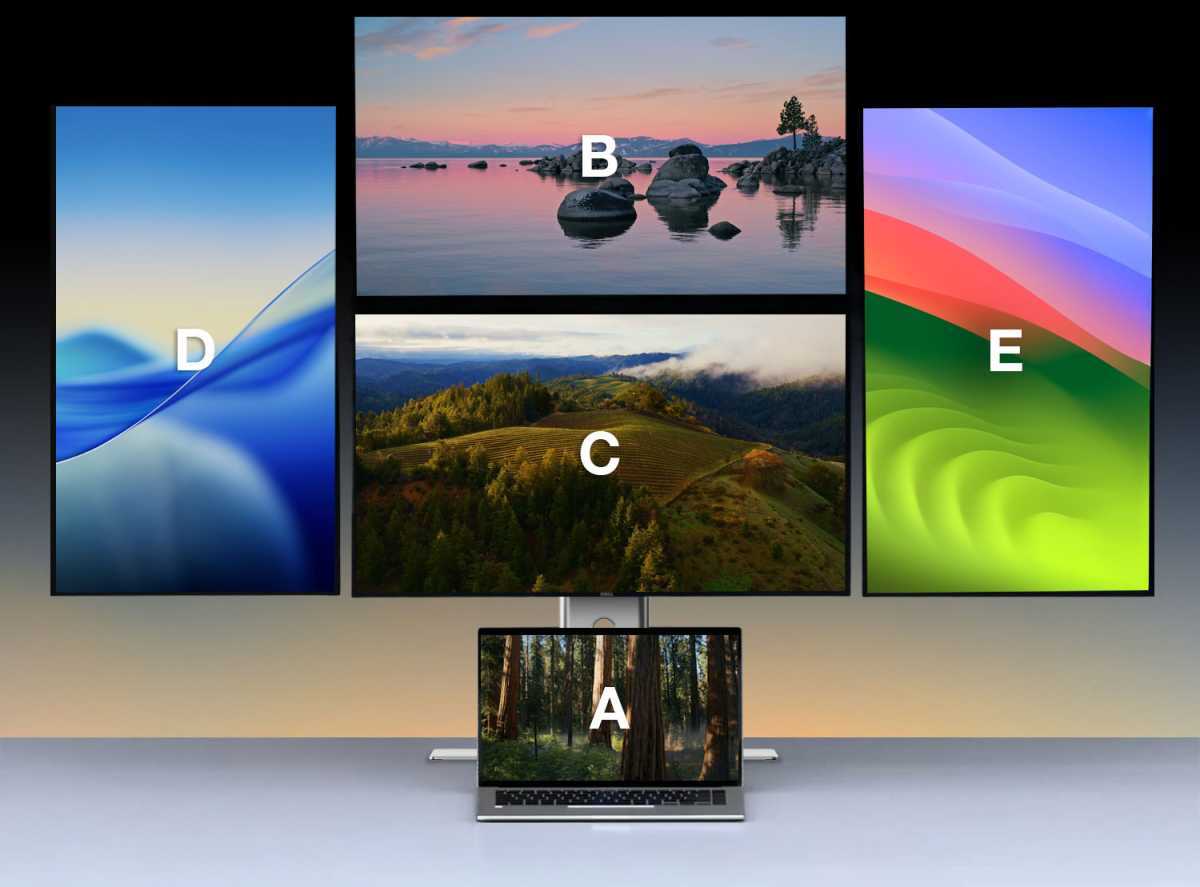

In any other case, macOS treats a number of related screens as a single mirrored show, limiting it to mirroring fairly than extending to 3 or extra screens. As a substitute, Mac customers should join a number of shows on to their Mac’s particular person ports or use docks that help third-party DisplayLink software program, which compresses the video alerts to permit extra prolonged shows, however at a potential price to picture high quality. See our critiques of the greatest DisplayLink docks.
Satechi
How can M5 Macs help extra shows with out MST?
This new means might be a by-product of Thunderbolt 5’s daisy-chaining prowess, based on Kensington. If the person has 4 Thunderbolt shows, they might join the shows to one another and allow as much as 4 exterior shows.
Equally, CalDigit believes the brand new M5 Professional/Max limits are by-products of Thunderbolt’s DisplayPort tunnelling, which wraps native DisplayPort video and audio alerts into USB4 packets to move them over a single USB-C cable. It acts as a kind of “repeater” that permits environment friendly, high-bandwidth transmission of video alongside information and energy.
How Apple’s newest top-end processors bend this to their will is, as but, unknown for certain.
