Apple has modified its MacBook connection normal from Thunderbolt 4 to Thunderbolt 5, however some earlier MacBook Air fashions had their ports listed as “Thunderbolt / USB 4” and “Thunderbolt 4 and USB 4” on its Professional and Max fashions.
What does all this imply? What’s the distinction between Thunderbolt 5, Thunderbolt 3 and Thunderbolt 3? After which what’s USB 4?
We thought that USB and Thunderbolt couldn’t get any extra complicated with many alternative speeds (from 5Gbps to 120Gbps) and features attainable utilizing the identical “Sort-C” connection.
From an Apple person’s perspective, there isn’t a fantastic deal in Thunderbolt 4 that was new or completely different from Thunderbolt 3, with which it’s backwards appropriate. The large modifications have arrived with Thunderbolt 5.

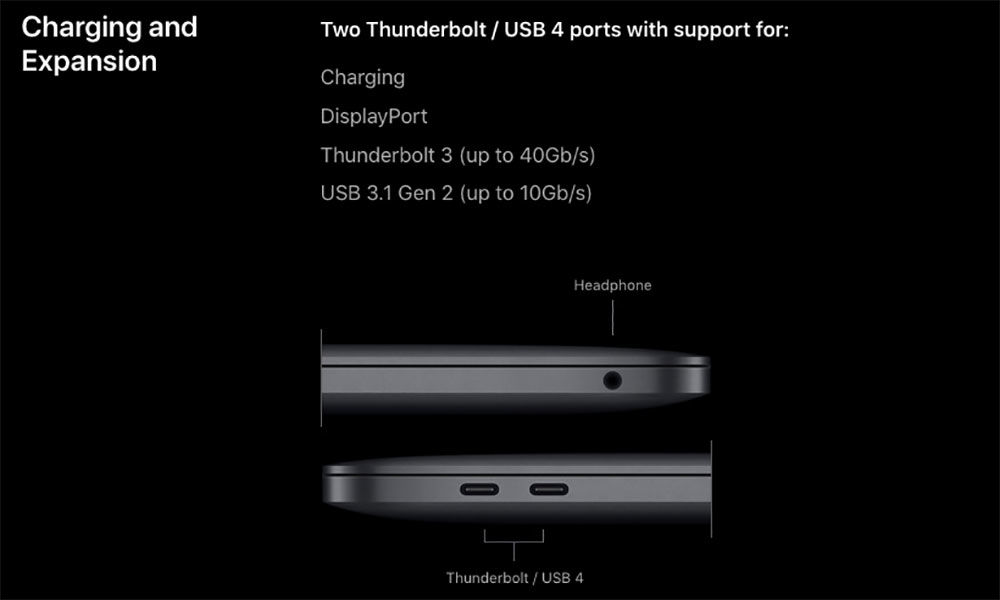

Certainly, in its M1 and M2 MacBooks tech specs, so as to add to the confusion Apple didn’t even name it Thunderbolt 4, itemizing it as “Thunderbolt / USB 4” together with Thunderbolt 3. For the superior M1 Professional and M1 Max MacBook Professional fashions, Apple listed the ports as full Thunderbolt 4—it’s because the Professional/Max variations can assist a number of exterior screens, in contrast to the restricted plain M1 or M2 MacBooks. With out the power to connect with two exterior shows, it may’t be labelled as licensed Thunderbolt 4.
What’s the distinction between Thunderbolt 4 and Thunderbolt 5?
After a lot teasing in 2022 and a demo in October 2022, Intel formally introduced Thunderbolt 5 on September 12, 2023, and Apple began introducing it into its MacBook Professional, Mac Studio and a few Mac mini fashions from 2024.
Thunderbolt 5 is an actual step up from Thunderbolt 4—in contrast to Thunderbolt 4’s minor (Mac) enhancements on Thunderbolt 3.
Bandwidth is doubled from 40Gbps to 80Gbps, and show connections go as quick as 120Gbps—so as much as 3 times extra bandwidth than earlier current connectivity options.
Thunderbolt 5 provides as much as 240W of charging energy downstream to the linked Mac. Apple’s 16-inch MacBook Professional helps 140W PD 3.1 by means of its MagSafe 3 port and now by way of its Thunderbolt 5 ports; Thunderbolt 4 ports are rated PD 3.0 and restricted to 100W. Meaning the Thunderbolt 5 MacBooks can fast-charge by way of both the MagSafe 3 connection or Thunderbolt 5 ports (utilizing both 240W-rated Thunderbolt or USB-C cables).
Thunderbolt 5 additionally helps DisplayPort 2.1—in comparison with at this time’s DisplayPort 1.4. DisplayPort 2.1 helps a max 10K decision (10240-×-4320 pixels at 60Hz) on a single show, in comparison with the 8K decision supported by DisplayPort 1.4. It additionally consists of improved model of Show Stream Compression (DSC 1.2a) that improves bandwidth administration.
Thunderbolt 5 gives the power to daisy-chain as much as 10 gadgets because of the twin USB Sort-C ports. It may dynamically regulate bandwidth, prioritizing one route over the opposite primarily based on utilization
Thunderbolt 5 is backward appropriate with Thunderbolt 3, Thunderbolt 4, and USB4 gadgets, so you’ll be able to improve with out having to exchange current peripherals.
What’s the distinction between USB4 and Thunderbolt 4?
Intel didn’t need there to be a complicated USB 4.1, 4.2, and many others, so it jammed the 4 proper subsequent to the USB. Apple ignores this and insists, in its Apple-like method, on calling it “USB 4”.
Each use the identical Sort-C connector, identical to Thunderbolt 3, too.
Thunderbolt 4 is predicated on the identical underlying protocol as USB4—the 2 are tightly linked, with all Thunderbolt 4 gadgets supporting USB4. If somebody has a USB4 laptop computer, they will use a TB4 machine and the opposite method round.
The truth is, Thunderbolt 4 is USB4 with all of the trimmings.
Not all USB4 gadgets might be as highly effective because the totally licensed Thunderbolt 4, nevertheless.
Similar to Apple’s model of Thunderbolt 3, Thunderbolt 4 will at all times have a full 40Gbps bandwidth.
USB4, nevertheless, begins at 20Gbps however may attain Thunderbolt 4’s 40Gbps. Look out for USB 20 or USB 40 in product advertising and marketing.
A USB4 port can solely assist one show. Thunderbolt 4 can assist two 4K shows.
The advantage of USB4 is that it’s going to imply that producers can launch extra highly effective hubs and docks that aren’t Thunderbolt, at a less expensive value.
Nonetheless, since Thunderbolt merchandise are licensed, it implies that they’re of the very best normal. USB4 gadgets don’t must be licensed and so ultimately we are going to see many USB4 gadgets flooding the market with various levels of high quality, as we see with USB-C hubs at this time.
What’s Thunderbolt hubbing?
Thunderbolt 4 is, in some methods, only a software program improve for Mac customers. You want no less than Apple’s Huge Sur working system (macOS 11) to get its new hubbing performance.
Hubbing does away with the dangers of Thunderbolt machine daisy-chaining.
You’ve at all times been in a position to join a number of Thunderbolt gadgets however in a probably lengthy chain, which meant that should you eliminated any certainly one of them (besides the final one within the chain) all of the others turned unusable till the chain was re-established.
Now, with Thunderbolt hubbing, you’ll be able to have as much as 4 Thunderbolt ports in a hub or dock—every a separate ”department” that may be disconnected with out affecting every other Thunderbolt gadgets linked within the different ports.
As much as six Thunderbolt 4 gadgets could be well daisy-chained.
What’s the distinction between Thunderbolt 3 and Thunderbolt 4?
Thunderbolt 4 is simply considerably completely different for Home windows PCs, whose Thunderbolt 3 variations have been typically restricted in options—the place Apple at all times gave its customers the total Thunderbolt 3 characteristic set.
Thunderbolt 3 on a Home windows laptop computer might lack the total 40Gbps bandwidth, or perhaps not assist a number of shows or energy supply.
Poor PC customers, you’ve obtained to really feel for them.
Thunderbolt 4 requires necessary certification for all computer systems, which suggests Home windows customers lastly get all the nice options Apple customers obtained with Thunderbolt 3. So Thunderbolt 4 standardizes Thunderbolt 3 for all laptop customers.
It’s backwards appropriate, however shopping for Thunderbolt 4 or 5 gadgets can even future-proof your setup.
So in case your Mac has “simply” Thunderbolt 3, don’t fear. It’s simply that Home windows PCs can now be a part of within the enjoyable with out limitations, the place up to now PC producers might declare theoretical specs however not ship the most effective they may by being merely “appropriate” fairly than “licensed”.
It ought to be famous that the MacBooks with Apple’s personal M1 or M2 chips had a big limitation: they will’t run multiple exterior show natively. Nonetheless, there’s a workaround that permits M1 and M2 MacBooks to run multiple exterior show.
The truth is, Thunderbolt 3 was required to assist just one exterior 4K monitor, whereas each Thunderbolt 4 laptop computer has to assist two 4K shows or one 8K show.
Thunderbolt 4 and 5 guarantee which you can wake a pc with the shake of a mouse or the faucet of a keyboard on Thunderbolt 4 or 5 docks. This wasn’t at all times the case with Thunderbolt 3. That is perhaps why Apple isn’t particularly calling its Thunderbolt model 4, because of the M1/M2 show limitation.
TB4 and TB5 are additionally a extra data-safe know-how, as they requires Intel VT-d-based direct reminiscence entry (DMA) safety, often known as DMA remapping.
What else? Nicely, Thunderbolt 4 helps PCIe (peripheral part interconnect specific) at 64Gbps for quicker storage speeds than TB4’s 32Gbps and TB3’s 16Gbps. A few of the early Thunderbolt 3 MacBooks had much less bandwidth accessible on the right-hand-side Thunderbolt ports. Sooner PCIe is necessary should you incessantly switch very massive recordsdata between storage gadgets.
Right here we’re speaking in regards to the portion of complete Thunderbolt bandwidth allotted for PCI Specific information switch. With Thunderbolt 4 and 5, you’re assured to have all 4 lanes of PCI Specific accessible—so PCIe can eat as much as 32 or 64Gbps of the full 40Gbps/80Gbps Thunderbolt bandwidth. With Thunderbolt 3, relying in your laptop computer producer and mannequin, some implementations supply solely 16Gbps of PCIe bandwidth.
Different benefits of Thunderbolt 4 and 5 embody that hubs and docks can now have greater than two Thunderbolt ports (as much as 4) and that TB4 and TB5 cables could be as much as 2 meters lengthy and nonetheless deal with the 40Gbps bandwidth. Beforehand, passive TB3 cables needed to be 0.7m or underneath to deal with full bandwidth.
Thunderbolt 4 and (most) USB4 assist the newest USB PD 3.1 normal that permits for max charging of 240W in comparison with USB PD 3.0 and Thunderbolt 3’s 100W. Keep in mind that you want the proper kind of cable for the upper charging charges: learn our roundup of the finest Thunderbolt 4 cables.
Thunderbolt docks
We’ve examined the finest Thunderbolt 4 hubs and docking stations.

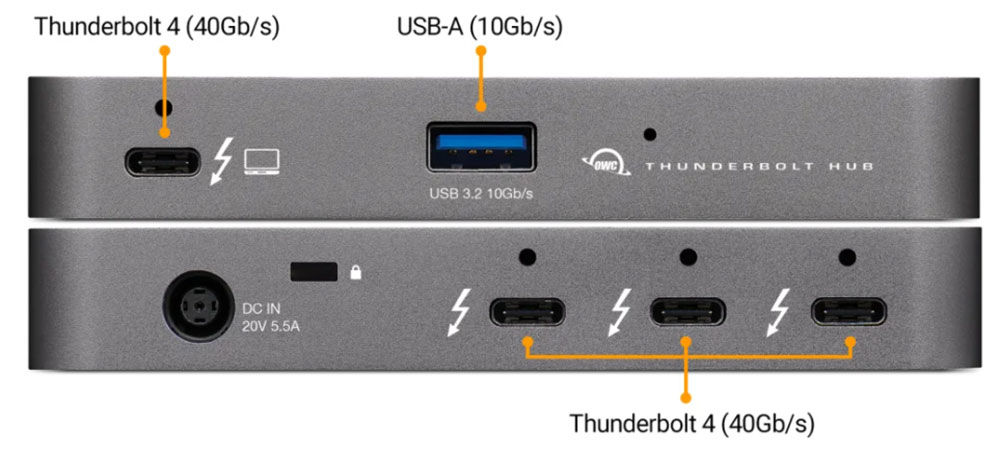

The TB4 and TB5 hubs usually characteristic 4 Thunderbolt ports (one upstream to connect with the pc, and three downstream to exterior gadgets). Docks generally swap out one or two downstream Thunderbolt ports for extra conventional show connectors (comparable to HDMI and DisplayPort).
You may study extra about probably the most totally featured hub we’ve examined in our Caldigit Thunderbolt 5 Factor 5 Hub evaluate. This hub options 4 Thunderbolt 5, two 10Gbps USB-C and three 10Gbps USB-A ports.
Foundry
The CalDigit Thunderbolt 4 Factor hub options 4 Thunderbolt 4 and 4 10Gbps USB-A ports.
Intel
Who owns Thunderbolt? Intel or Apple?
Apple and Intel have collaborated on Thunderbolt know-how since 2010, releasing its first Thunderbolt MacBook in 2011.
Apple even registered the trademark “Thunderbolt” though it handed this on to Intel, in return for “unrestricted use of the know-how”. However Intel is the official proprietor of the Thunderbolt know-how.
Earlier than this settlement, the know-how was identified by Intel as “Gentle Peak”.
