Wavlink Thunderbolt 5 Dock evaluate: Inexpensive quick Thunderbolt plus helpful energy choices

Value When Reviewed

$299.99

Greatest Costs In the present day: WAVLINK Thunderbolt 5 Dock

$256.49

The Wavlink Thunderbolt 5 Docking Station is a full docking station with 12 ports, together with a full 4 80Gbps Thunderbolt 4 and a couple of.5Gb Ethernet, obtainable at an reasonably priced value. It contains a first rate rack of high-end ports, and appears fancy, too.

Even when your laptop computer has Thunderbolt 4 (TB4) relatively than Thunderbolt 5 (TB5) connectivity, shopping for the newer sooner normal will future proof your buy. Backwards appropriate with Thunderbolt 3 and 4, TB5 options the quickest 80Gbps bandwidth (as much as 120Gbps Bandwidth Increase for unidirectional video) plus sensible machine daisy-chaining and super-fast storage connectivity.

Foundry

Specs and options

• One upstream Thunderbolt 5 port (80Gbps, 140W)
• Two downstream Thunderbolt 5 ports (80Gbps, 15W)
• One downstream Thunderbolt 5 port (80Gbps, 30W)
• 4 USB-A ports (10Gbps)
• Ethernet (2.5Gb)
• UHS-II SD Card reader (312MBps)
• UHS-II MicroSD Card reader (312MBps)
• 3.5mm audio jack
• 230W energy provide

In addition to its upstream Thunderbolt 5 port that connects to your laptop computer, there are three downstream TB5 ports that connect with different gadgets comparable to screens or storage drives: one is on the entrance with the upstream TB5 port, and two are on the again.

Simon Jary

Wavlink’s Thunderbolt 4 dock had only one downstream TB4 port because it sacrificed two doable Thunderbolt ports for devoted HDMI 2.1 ports. With this new mannequin, Wavlink ditches the video ports to provide the alternative of which TB ports to make use of to connect with screens both through a direct USB-C connection or utilizing USB-C to DisplayPort or USB-C to HDMI adapter cables.

This offers you flexibility, and if connecting two screens we anticipate you’ll select the 2 TB5 ports on the again.

The downstream TB5 port on the entrance can output at 30W, which is definitely sufficient to quick cost an iPhone or iPad. The 2 TB5 ports on the again can deal with 15W every.

The upstream TB5 port can output at 140W (PD 3.1), which is what it is advisable fast-charge the 16-inch MacBook Professional so is nice for the entire vary.

The exterior energy provide can present as much as 230W of energy, which is a fine addition from the corporate’s relatively puny 160W TB4 dock.

USB: Thunderbolt is backwards appropriate with USB-C, which makes use of the identical finish connector, so any of the TB ports not getting used to attach a monitor can be utilized for USB-C gadgets in addition to speedy Thunderbolt. There are 4 speedy 10Gbps USB-A ports. USB-A has a spot for legacy gadgets, however do we want 4 them on the expense of a spare USB-C or two?

Simon Jary

Ethernet: Whereas WiFi is nice for telephone use, typically hooking as much as the house or workplace wired community offers you quicker and extra secure downloads. Most native space networks (LANs) use 1Gb Ethernet, referred to as Gigabit Ethernet or 1GbE. More and more networks are shifting to a lot sooner 2.5GbE, 5GbE and even 10GbE. The Wavlink Thunderbolt 5 Dock provides 2.5GbE, which is backwards appropriate with 1GbE so even if you happen to’re not but on the sooner community pace you’ll be prepared for it once you do.

Simon Jary

Card readers: Though Apple’s MacBook Professional laptop computer features a 250MBps card reader, having one on the dock is handy. The Wavlink TB5 dock has two: one SD and one MicroSD, each on the quickest 312Mbps. These are properly positioned on the entrance for straightforward entry.

Such playing cards provide very reasonably priced and intensely transportable storage. On the time of writing you can get a 512GB SD card for below $50, though sooner playing cards are pricier.

Different ports: On the entrance there’s an anti-theft Kensington Safety Slot (additionally known as a Ok-Slot) and a combo 3.5mm In/Out audio jack.

Show capabilities

For most individuals the primary purpose for getting a docking station is to simply add exterior screens to their laptop computer. Join a cable from the dock to every monitor and also you massively prolong your display screen actual property.

Whereas the dock can help as much as three shows for Home windows laptops, limitations in Apple’s setup limits you to only two, except you put in third-party software program comparable to DisplayLink that may give you entry to as much as 5 exterior shows. 5!

Nevertheless, for 3 or extra screens the dock must help DisplayLink, and the Wavlink Thunderbolt 5 Dock isn’t a type of. See our critiques of the finest DisplayLink docks for choices, however observe that on the time of writing there have been no Thunderbolt 5 DisplayLink docks. Your solely answer for TB5 plus three shows with out DisplayLink is the iVanky FusionDock Max 2, which has a nifty dual-chip association that makes use of two of the MacBook’s Thunderbolt ports.

The Wavlink Thunderbolt 5 Dock helps as much as two 6K at 60Hz shows for many M1/M2/M3 Professional/Max/ MacBooks or any M4/M5 fashions.

These MacBooks might go for a single 8K/60Hz show as an alternative.

Non-Professional/Max M1/M2/M3 MacBooks help single 4K or 6K screens. DisplayLink can be helpful in case your MacBook is working a type of plain M1 or M2 processors as Apple additional limits these laptops to a single show. That’s by the by as M1 MacBook house owners are unlikely to be available in the market for a Thunderbolt 5 dock, and it’s time we acquired again to the evaluate.

Simon Jary

Design and construct

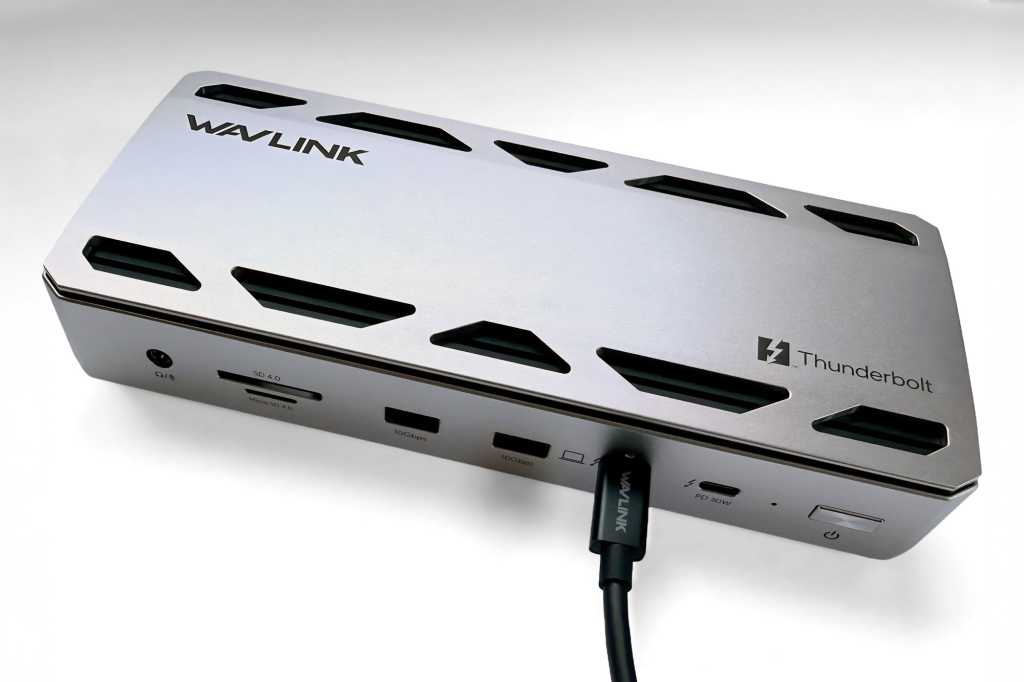

The Wavlink Thunderbolt 5 Dock is a great aluminum construct with some futuristic cooling vents on the high. Beneath are silicone pads that elevate the dock off the desk floor for stability and additional cooling.

I’m not a fan of getting the upstream Thunderbolt port on the entrance of the dock because it’s the one cable you already know will all the time be in use, so we choose it hidden across the again. Ideally, given the selection I’d have all of the Thunderbolt ports on the again and a spare USB-C port on the entrance for charging. However that’s not how Wavlink has laid out its ports. Nonetheless, having three downstream ports is greater than some docking stations provide and we’re pleased with that.

Wavlink has included an on/off button, which is appreciated. Though Apple has made the MacBook intelligent sufficient to handle its energy in a smart vogue, I nonetheless like to show off energy to the laptop computer’s battery as I don’t need it continually saved crammed to 100% after I’m not utilizing it. An influence button means I don’t should yank the cable out to interrupt the ability between the dock and the laptop computer after I’ve completed working.

Value

At $299.99 or £239.99, the Wavlink Thunderbolt 5 Dock is priced beneath most Thunderbolt 5 docks. It shares the sub-$300 value level with the Plugable Thunderbolt 5 Docking Station, and has an analogous array of ports, though it has yet another and sooner USB-A ports. The Wavlink additionally wins on the next total energy provide: 230W vs 180W.

The Plugable can stand both vertically or lie flat just like the Wavlink and sensibly locations the upstream TB5 port on the again. The Wavlink’s 30W entrance TB5 port beats the Plugable’s 15W entrance TB5 port.

In any other case, they’re very related When it comes to tech specs.

See our roundups of the finest Thunderbolt docks for Mac for different comparable options.

Do you have to purchase the Wavlink Thunderbolt 5 Docking Station?

Whereas its triple-monitor potential is muted on Macs—Apple’s limitation, not the dock’s—as a dual-display dock with a helpful bunch of top-rated ports the Wavlink Thunderbolt 5 Docking Station is nice worth for cash for 80Gbps pace and energy.
